Compressor Pallet Lifter

Spring-loaded pallet leveler that keeps loads at ergonomic working height — no power required.

Industrial spring-loaded pallet leveler designed for heavy-duty manufacturing environments where workers repeatedly access palletized components. Automatically maintains ergonomic working height while handling 1,000 kg loads without requiring electrical connections or maintenance-prone hydraulic systems.

View Products

Key Specs Overview Technical Specifications Applications Video FAQ Contact Related

Key Specs

Weight

1000kg

Overview Points

Heavy Duty Capacity

1,000 kg rated capacity with automatic spring adjustment maintains ergonomic height as loads change

Zero Power Operation

Scissor-lift with coil springs operates without electricity, hydraulics, or compressed air

360° Rotation

Rotating top plate eliminates walking around pallets during picking and assembly operations

Shock Absorption

Built-in dampener prevents sudden drops and maintains stable platform during load transitions

Forklift Compatible

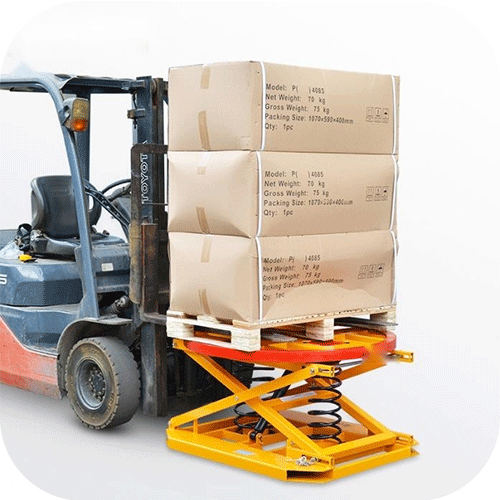

Machined pockets in 915 × 934 mm base enable quick repositioning between workstations

Ergonomic Range

240 mm static height to 705 mm maximum for comfortable standing access to pallet loads

Standard Compatibility

1,110 mm table fits standard pallets with powder-coated steel construction for durability

Safety Locking

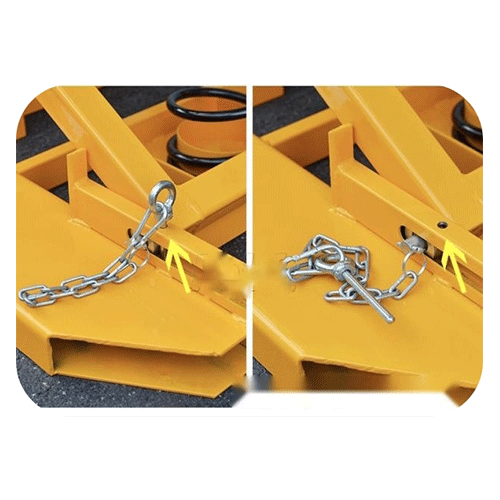

Quick-plug pins secure scissor arms during transport and maintenance for operator safety

Key Features

Automatic, Powerless Leveling

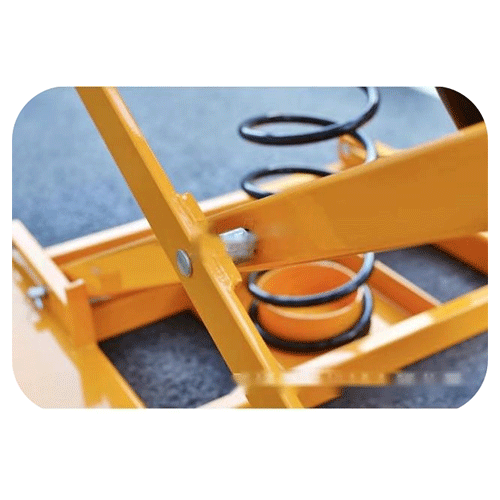

Heavy-duty coil springs compensate for load changes automatically — as items are removed from the pallet, the platform rises; as items are added, it lowers. No electricity, hydraulic pump, or control panel is needed, which means zero energy cost and virtually no maintenance.

Ergonomic Efficiency

By keeping the working layer of the pallet near waist height, the leveler reduces bending, reaching, and lifting strain for operators. The 360° turntable further eliminates the need to walk around the pallet, shortening pick-and-pack cycles and lowering fatigue-related injury risk.

Stable, Safe Operation

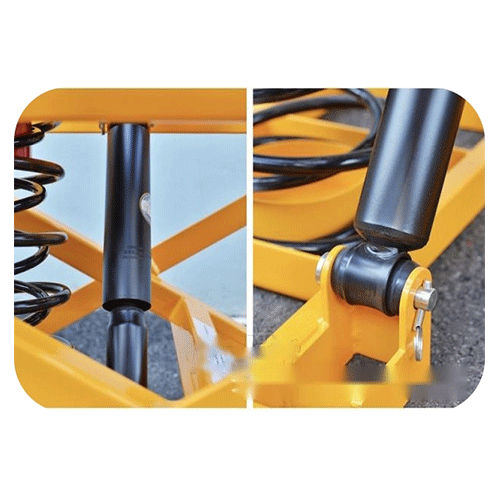

A central shock absorber cushions platform movement during load transitions, preventing jarring drops that could damage products or injure operators. Quick-plug locking pins secure the scissor arms in a fixed position when the unit is being moved or serviced.

Durable, Industrial-Grade Construction

The frame and scissor mechanism are fabricated from structural steel with a powder-coated finish for long-term corrosion resistance. At 125 kg net weight, the unit is robust enough for daily industrial use yet light enough to relocate easily by forklift.

Flexible Deployment

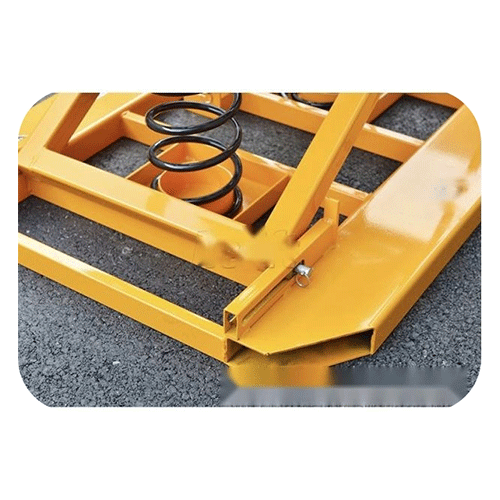

Integrated forklift pockets in the base allow rapid repositioning between production lines, packing stations, or warehouse zones. The compact 240 mm static height means standard pallets can be loaded onto the platform with a hand pallet jack.

Technical Specifications

Lifts are widely used in many fields such as factories, warehouses, docks, parking lots, workshops, airports, ports and other places. With the development of the economy, the use of lifts in various industries is becoming more and more extensive.

Parameter	Data
Rated carrying weight	1000kg
table size	1110mm
Base size	915*934mm
Static height of table	240mm
Height of table top	705mm
net weight	125kg

Applications

Compressor and motor assembly lines — positioning heavy units at ergonomic height for wiring, testing, and packaging

Warehouse order picking and packing stations

HVAC and refrigeration component handling during production

Appliance manufacturing lines requiring repetitive loading and unloading of palletized parts

Dock and shipping areas for consistent-height pallet staging

General factory material handling to reduce worker fatigue and improve throughput
